Aluminized Fire Suit heat resistant clothing fireproof suit

Aluminized Fire Suit heat resistant clothing fireproof suit

Features

Jacket /Hood/Face Shield/Gloves/Pant design (or other designs as customer need )

1. Aluminum material , 645gsm

 2.  Hood, Face Shield, Gloves, Coat and Pants
3. Can supply hood , googles , sleeves , legging and feet covers  for your whole set protection

 4. Widely used in high tempertuare , fire , metal splashing environment

 5. Sizes can be made based on customers' needs

Specifications

 Aluminized Fire Suit heat resistant clothing fireproof suit

Aluminized Fire Suit
1. Auminized Fabrics, viscose lining
2. Radiant heat resisting up to 1800C
3. Coverall or coat and pant

  Aluminized Fire Suit

Aluminized Fire Suit heat resistant clothing fireproof suit

Jacket /Hood/Face Shield/Gloves/Pant design

 Aluminized Fire Suit heat resistant clothing fireproof suit

Component part:

Aluminized Fabrics (Heat insulation Felt),  viscose lining.

Special property:

Fire proof, radiant heat resistant, short time flame contact.

Two types:

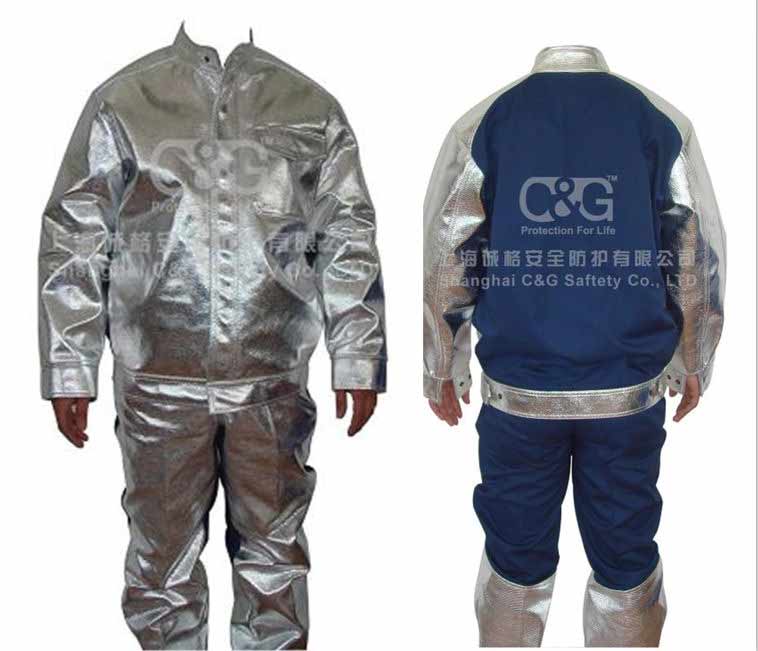

1. Jacket and Pants

2. Jackets (SCBA bag on the back) and Pants

Style:

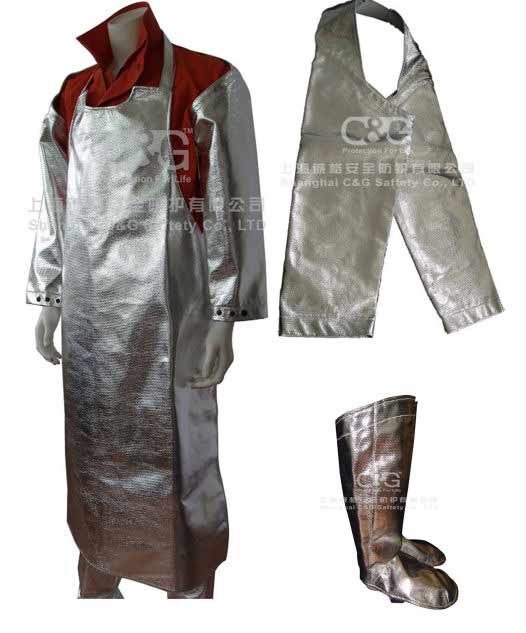

Jacket and pants or coverall, made by jacket, pants, face shield, mitten, shoes covers.

Complete Suit consists of the following:

Overall: An Overall is one piece suit or 2 pc. Jacket & trouser having Zipper & Stud fastner with or without Pouch on back to accommodate breathing apparatus. Stitching is done by Para-aramid Threads.

Face shield: Two elastisized straps to cover well below the shoulders. Hood has the visor consisting of curved plain and tinted poly carbonate & outer layer of thin transparent mica. The glass is chromeplate.

Mitten: 14 long five fingered type Gloves having stud fastener for better securing at wrist.

Shoes covers: are made of upper layer of aluminised glass fibre fabric & inner lining of high quality leather, with heavy duty zipper covered with aluminised fabric flap with extra stud for double protection. Special Neoprene Rubber sole in non skid pattern for use in oil / chemical / grease area. Metal toe for extra air-room & protection.

Application: Protecting fireman from the fire, when they approach, when they approach the fire, high temperature, heat oven or burnt things. Suit are used for rescue operations in an area of intense heat, fire, steam, hot liquid by fire fighters in industries like Petrochemical plants, foundries, plant, steel, glass, ceramics and etc.

Preservation: The fireman’s protective suit should be put in a dry place with air through to prevent the composite layer from falling off the suit after damped.

The aluminized fabric is tested to BS-3119, BS-3120, BS-5438 and federal standard 191 / 59032 .

 Aluminized Fire Suit heat resistant clothing fireproof suit

Technical data:

NO.

Test Item

Standard

Results

1

    Weight(g)

less than 2800

2723

2

flame retardation

Damage length (mm)

less than 100

3

Continuous burning time(s)

less than 2

0

Flame resistant time

(s)

less than 5

1

3

Tearing Strength (N)

Warp

more than 32

268. 4

Weft

more  than 32

274. 2

4

breaking strength (N)

Warp

more than 450

2190. 2

Weft

more than 450

1979. 0

5

Radiation resistant heat permeability(°C)

The inner surface temperature rise more than 25

16. 5

6

Peeling strength(N/30mm)

more than 9

Qualified

7

Impermeability performance(Pa)

Hydrostatic pressve more than 4000

more than 4000

8

Seam breaking strength (N)

more than 400

539. 8

Standard Sizes as below:



S

M

L

XL

XXL

Body Length

73

76

79

82

85

Chest circumference

124

128

132

136

410

Shoulder breadth

53

54

55

57

58

Sleeve length

55

57

59

61

63

Pants length

102

104

107

110

113

Hip circumference

124

128

132

136

140

Waistline

100

102

104

106

108
