An arc flash incident is not merely an electrical shock event. When a short circuit or ground fault occurs, an electrical arc releases extreme thermal energy, explosive pressure waves, and molten metal spray within milliseconds.

Arc temperatures can exceed 19,000°C (35,000°F) — hotter than the surface of the sun.

The purpose of an arc flash suit is not to make the wearer invulnerable. Its role is to control injury severity and keep damage within survivable limits.

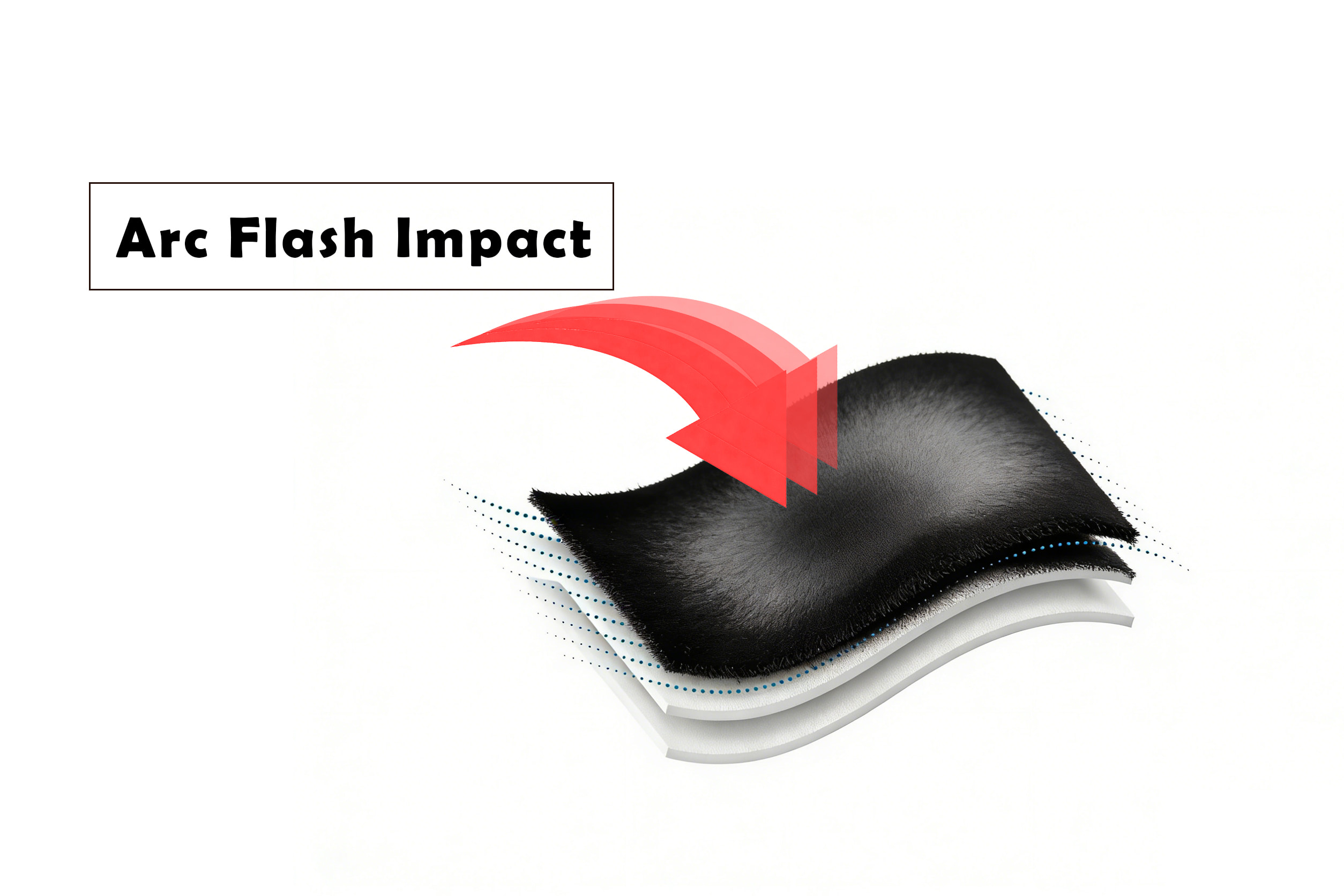

1️⃣ How Thermal Energy Is Managed

Arc flash events generate extreme radiant, convective, and conductive heat transfer. Without proper arc-rated PPE, exposed skin can reach third-degree burn thresholds in fractions of a second.

Non-Melting Fiber Technology

• Do not melt
• Do not drip
• Do not sustain combustion

Controlled Carbonization

• Forms insulating char layer
• Absorbs incident energy
• Slows heat transmission

Air Gap Insulation

Proper garment fit maintains insulating air space, significantly delaying heat transfer.

2️⃣ How Arc Blast Pressure Is Mitigated

An arc flash is also an explosive event. Rapid metal vaporization generates a shock wave.

High-Strength Textile Construction

• High tensile strength
• High tear resistance
• Impact durability

Multi-Layer Energy Distribution

• Distributes pressure forces
• Reduces rupture risk
• Maintains structural coverage

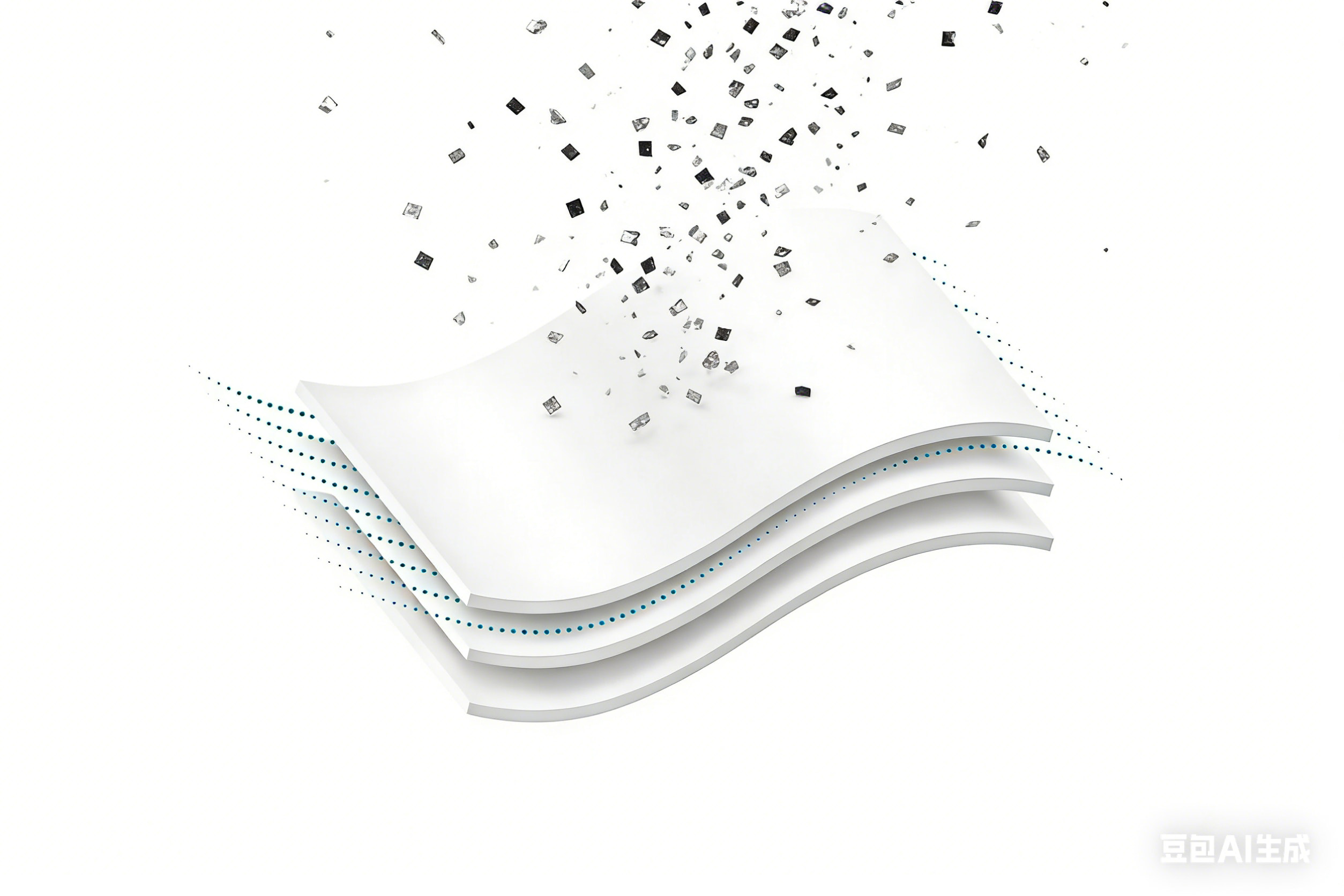

3️⃣ How Molten Metal Splash Is Controlled

Surface Shedding Design

• Rapid cooling on contact
• Minimized adhesion
• Shedding instead of penetration

Full Coverage System

Sealed, continuous garment coverage prevents molten splash entry through openings or gaps.

System-Based Protection Strategy

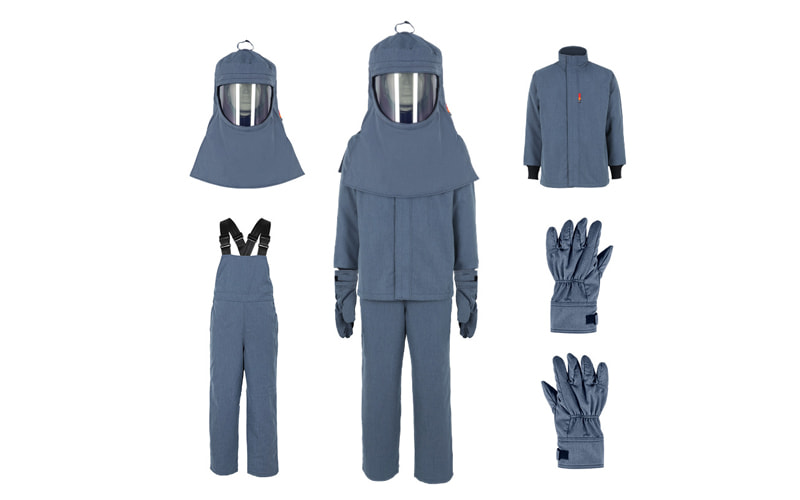

• Arc flash suit or arc-rated coveralls
• Arc-rated face shield or hood
• Insulated gloves
• Safety eyewear
• Electrical protective equipment

Arc flash protection is a layered safety system — not a single product solution.

Conclusion

Arc flash protection is not about eliminating arc energy. It is about delaying heat transfer, preventing ignition, reducing burn severity, and gaining critical milliseconds.

In high-energy electrical environments, those milliseconds can mean the difference between survivable injury and life-altering catastrophe.
