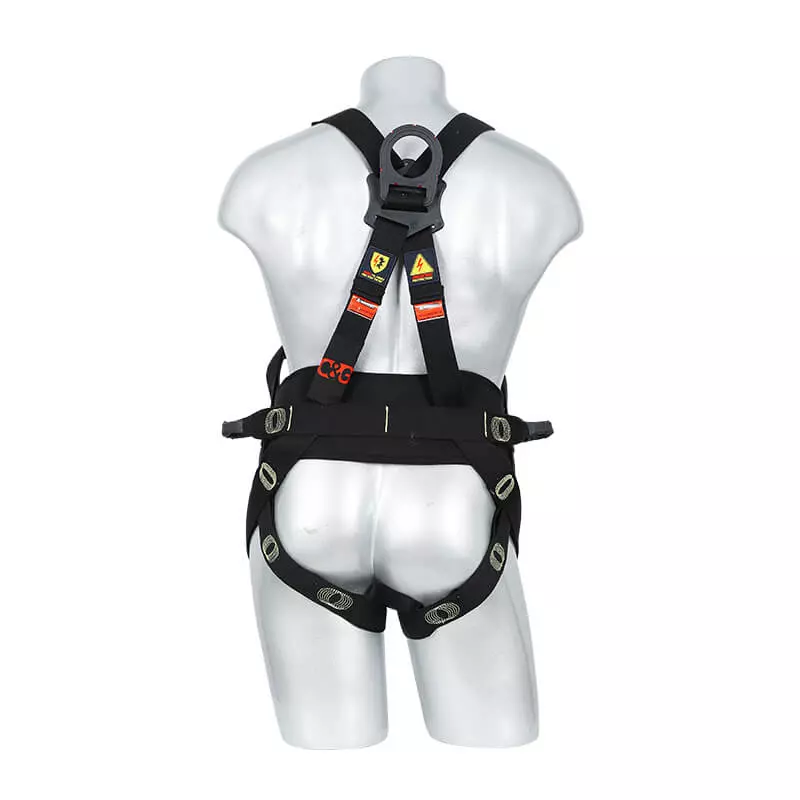

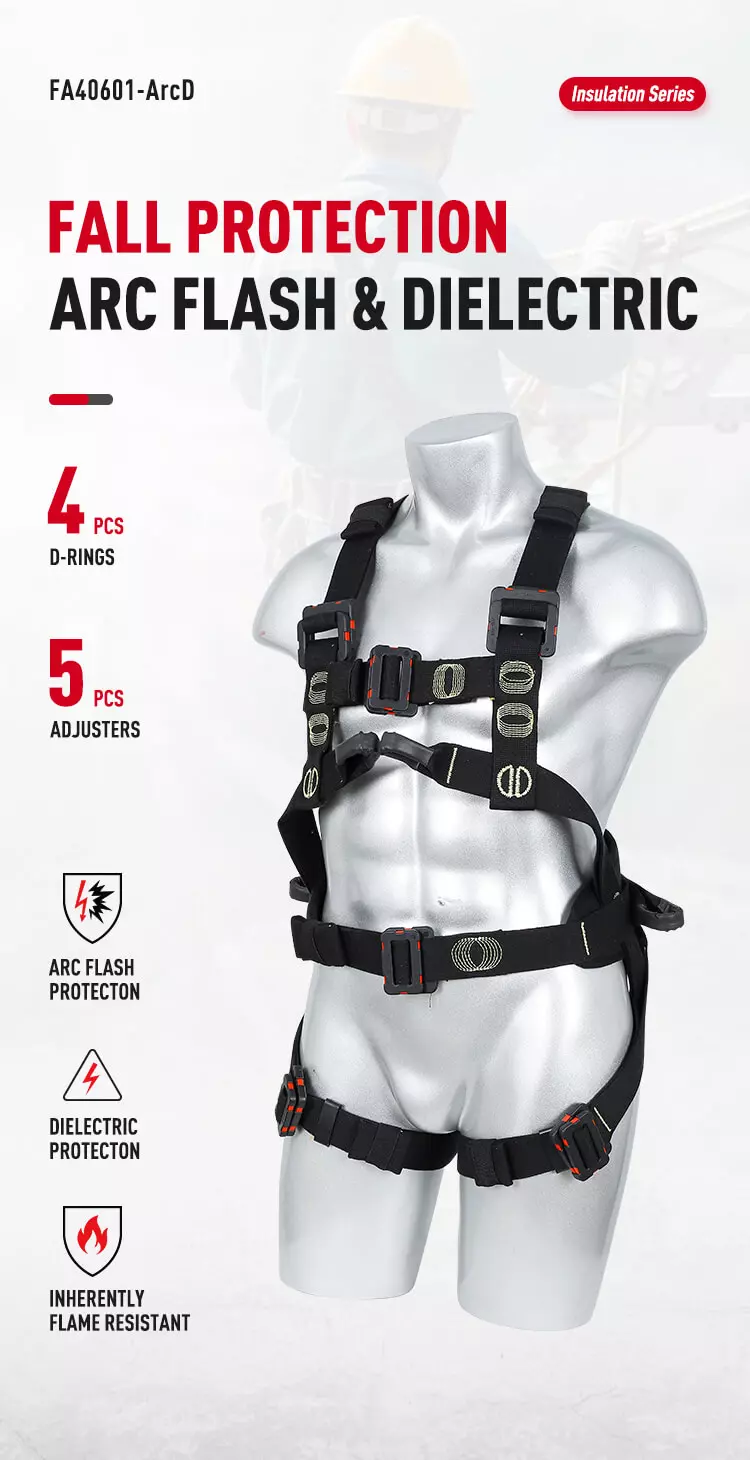

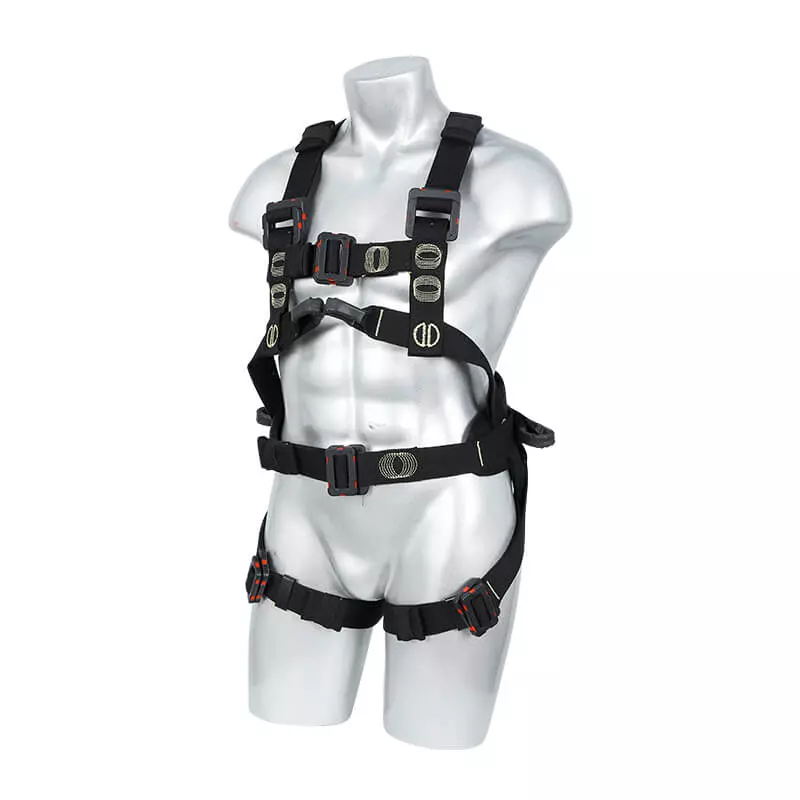

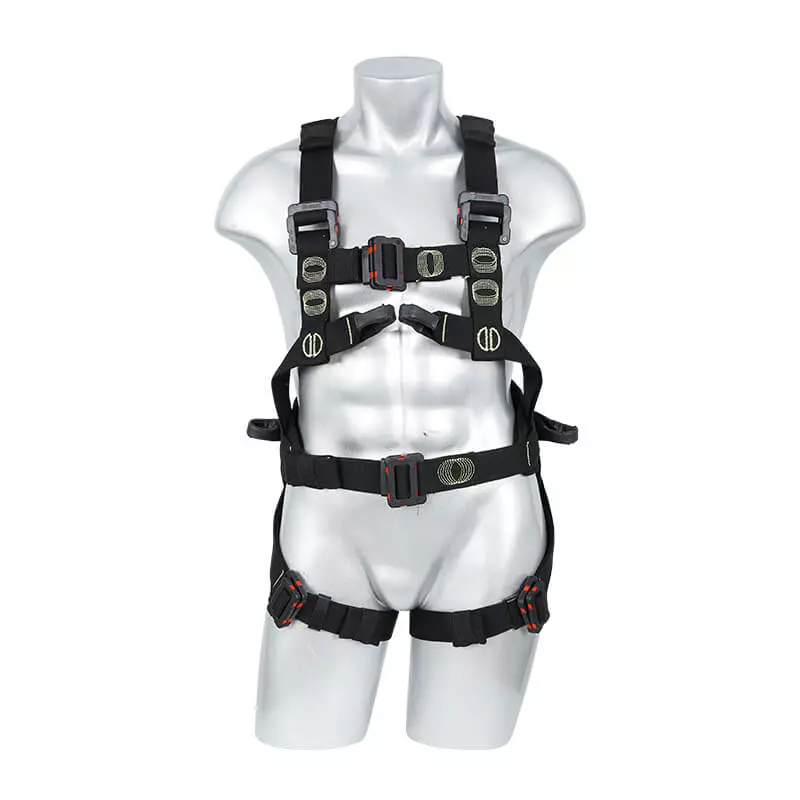

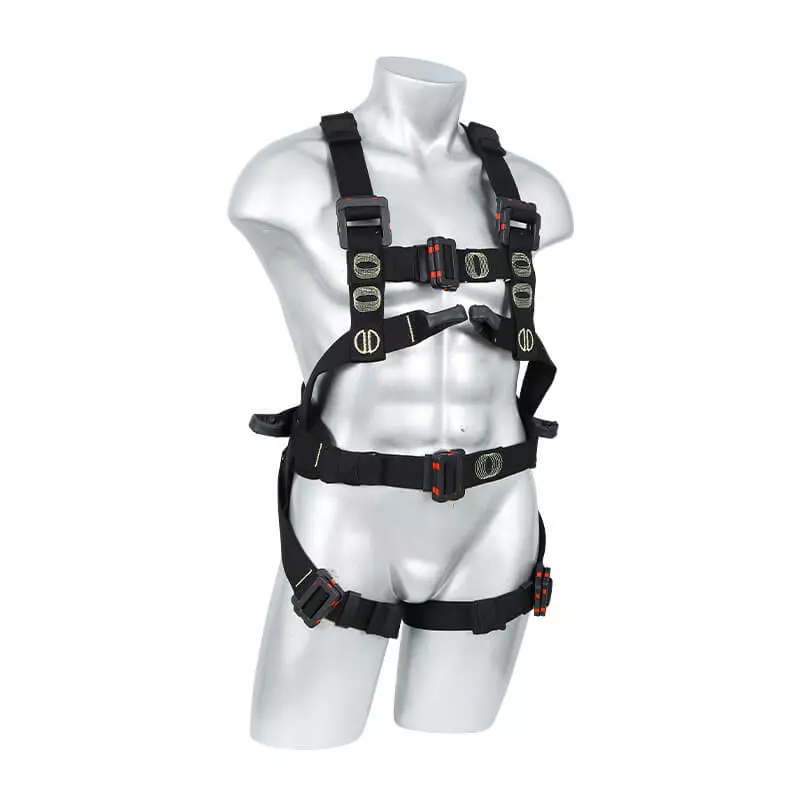

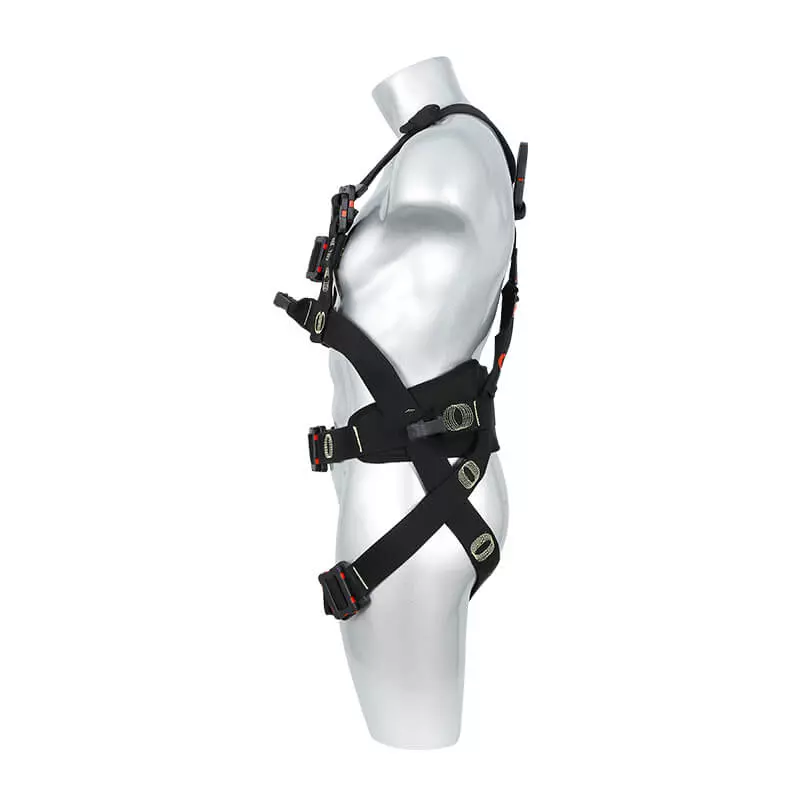

Model FA40601-ArcD 4 x Attachment point Construction Climbing Arc Flash Premium Full Body Harness with 9kV rated

overmolded Normal connect chest and leg closures is durable and provides you the protection from arc ash hazards to get

your job done right with features for maximum comfort and productivity

Technical Specifications

1. Performance Specifications

Item	Specification
Static Strength	3600 lbs. minimum
ANSI User Capacity	One user up to 310 lbs. max
OSHA User Capacity	Allowable up to 425 lbs. max

2. Relevant Standards

Category	Standard
ANSI	ANSI Z359.11-2021
OSHA	1910.140, 1926.502
ASTM	ASTM F887-23

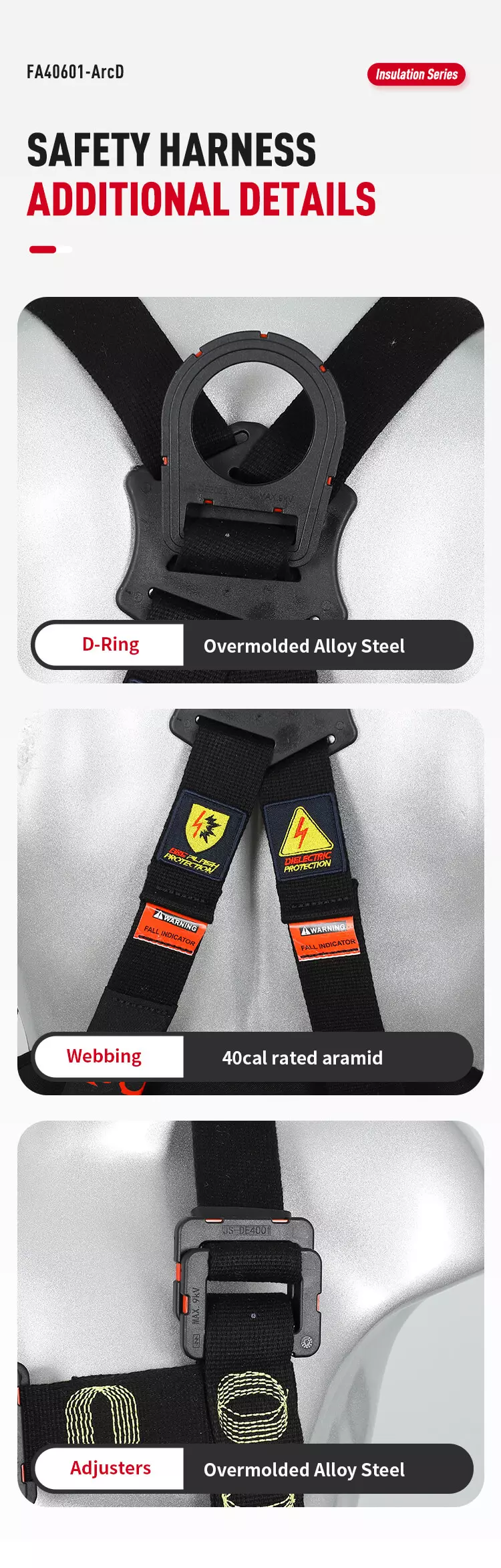

3. Material Specifications

Component	Material / Strength
Webbing	Aramid (5,000 lbs. minimum strength)
D-ring	Overmolded Alloy Steel (5,000 lbs. minimum strength)
Adjusters	Overmolded Alloy Steel (5,000 lbs. minimum strength)
Normal Connect Buckles	Overmolded Alloy Steel (5,000 lbs. minimum strength)

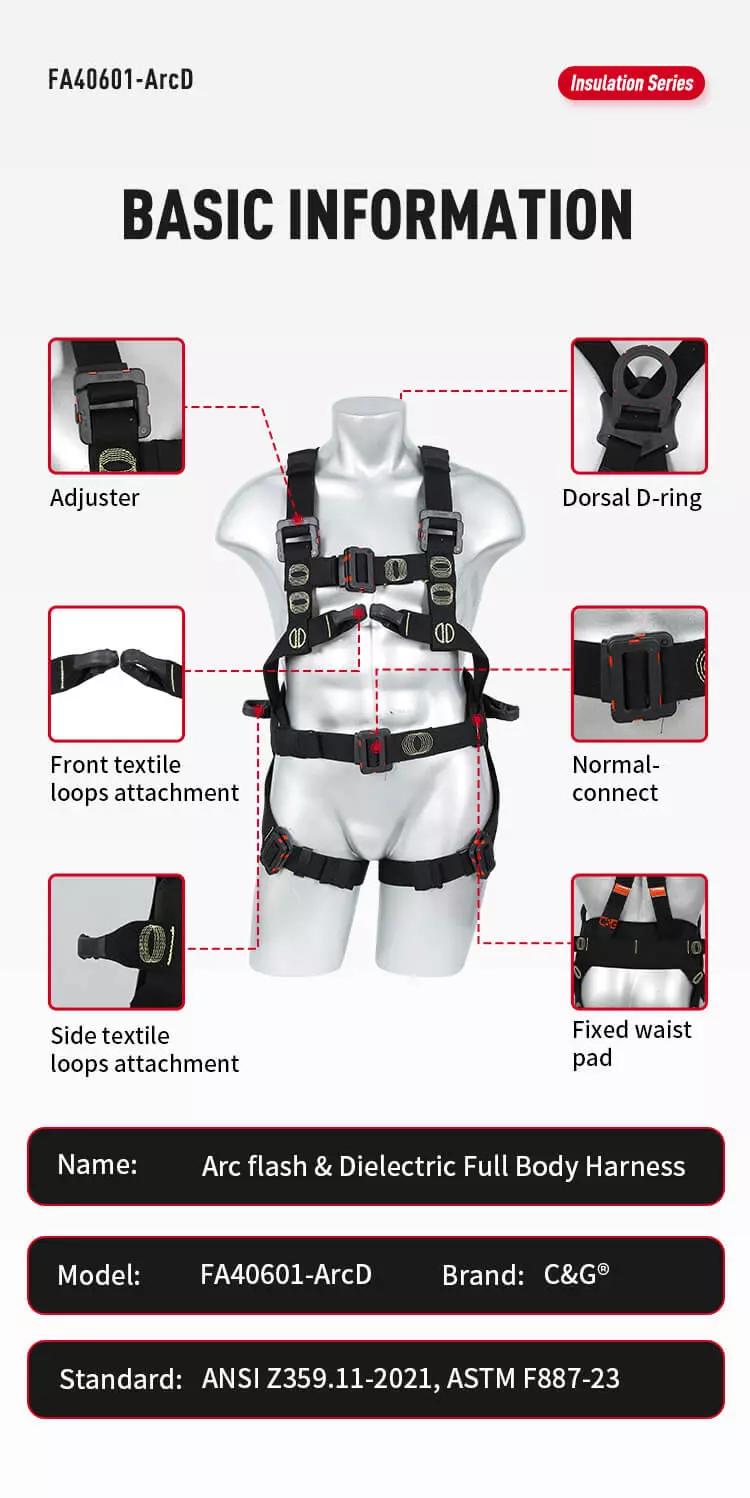

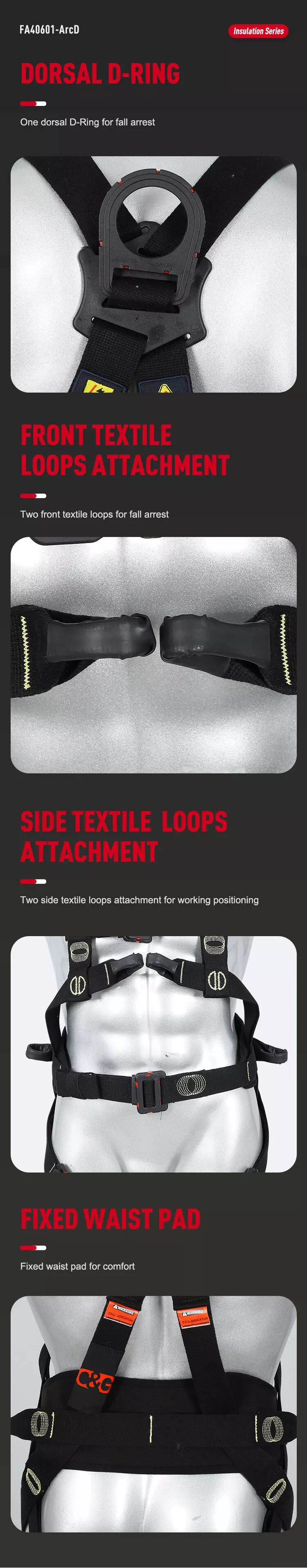

4. Features

Features
Dorsal D-ring
Front textile loops attachment
Side positioning D-rings
Normal-connect chest
Normal-connect legs
Shoulder pad
Fixed waist pad with Normal-connect belt
40 Cal rated aramid webbing
