Item	Details
Brand	Chengge

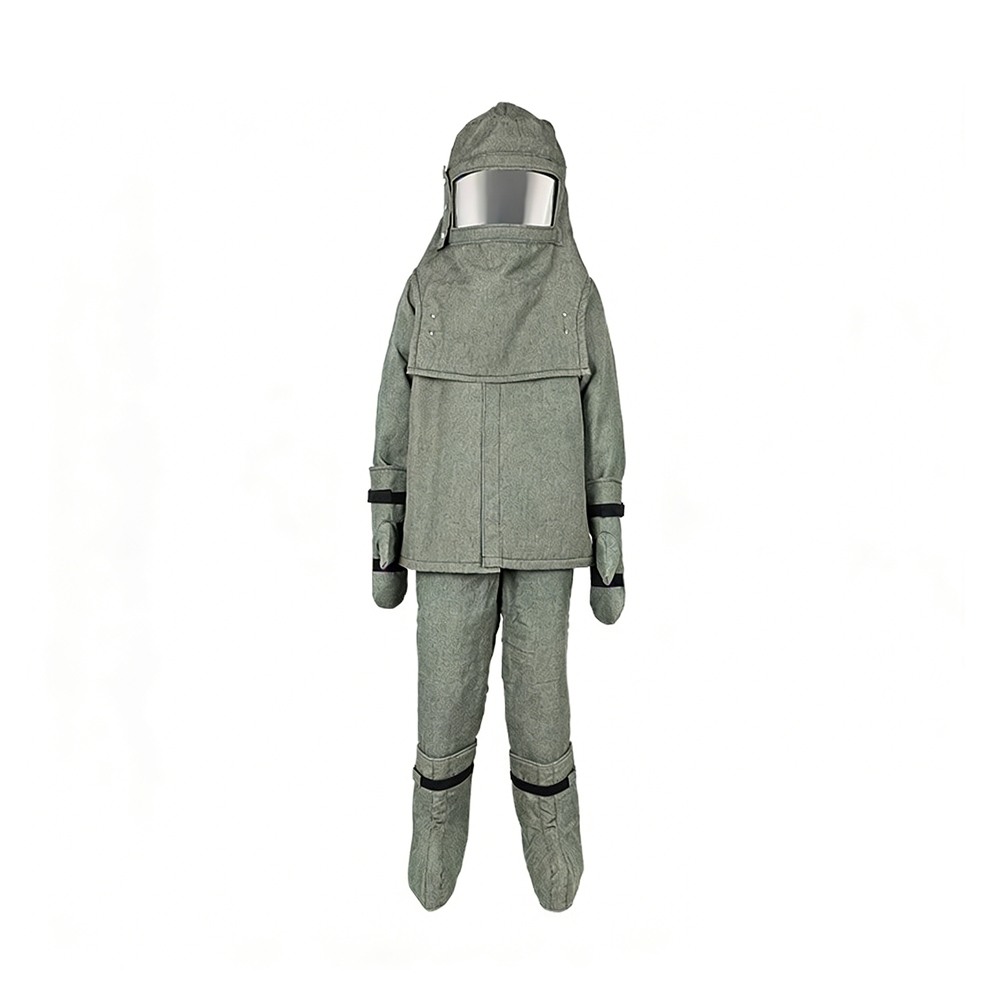

Product Name	Firefighter Proximity Protective Suit
Model	FBH-F/B
Standard	XF634-2015 “Firefighter Thermal Protective Clothing”. The suit consists of a hood (with helmet), protective jacket (with SCBA backpack compartment), protective trousers, gloves, and boots.
Product Description	The complete proximity suit includes a jacket, trousers (or one-piece suit), hood, gloves, and protective boots. It must be worn as a full set during use. Before use, the integrity of the entire suit must be inspected. Entry into the work site is strictly prohibited if the suit does not meet performance requirements.
Overall Thermal Protective Performance	TPP 47.7 cal/cm²
Flame Resistant Performance	(1) Outer layer char length (warp & weft): 3 mm; (2) Afterflame time: 0 s, no melting or dripping; (3) Afterglow time: 0 s, no melting or dripping
Flame Resistance Performance	At 1000°C for 30 seconds, inner surface temperature rise ≤ 25°C
Outer Layer Tensile Strength	Warp: 2200 N; Weft: 1200 N
Outer Layer Tear Strength	Warp: 120 N; Weft: 180 N
Glove Dexterity	Under test conditions, able to pick up a minimum test rod diameter of 8.0 mm; Dexterity level: Grade 3
Face Shield Feature	Anti-fog / defogging function
Weight	≤ 10 kg
Additional Features	Permanent washing label; RFID chip (product data identification) available for bulk orders; Available in large, medium, and small sizes
Certification	Test report issued by National Special Labor Protection Equipment Quality Supervision & Inspection Center (Jiangsu) / Jiangsu Special Safety Protection Products Quality Supervision & Inspection Center, with all test items within accredited scope
